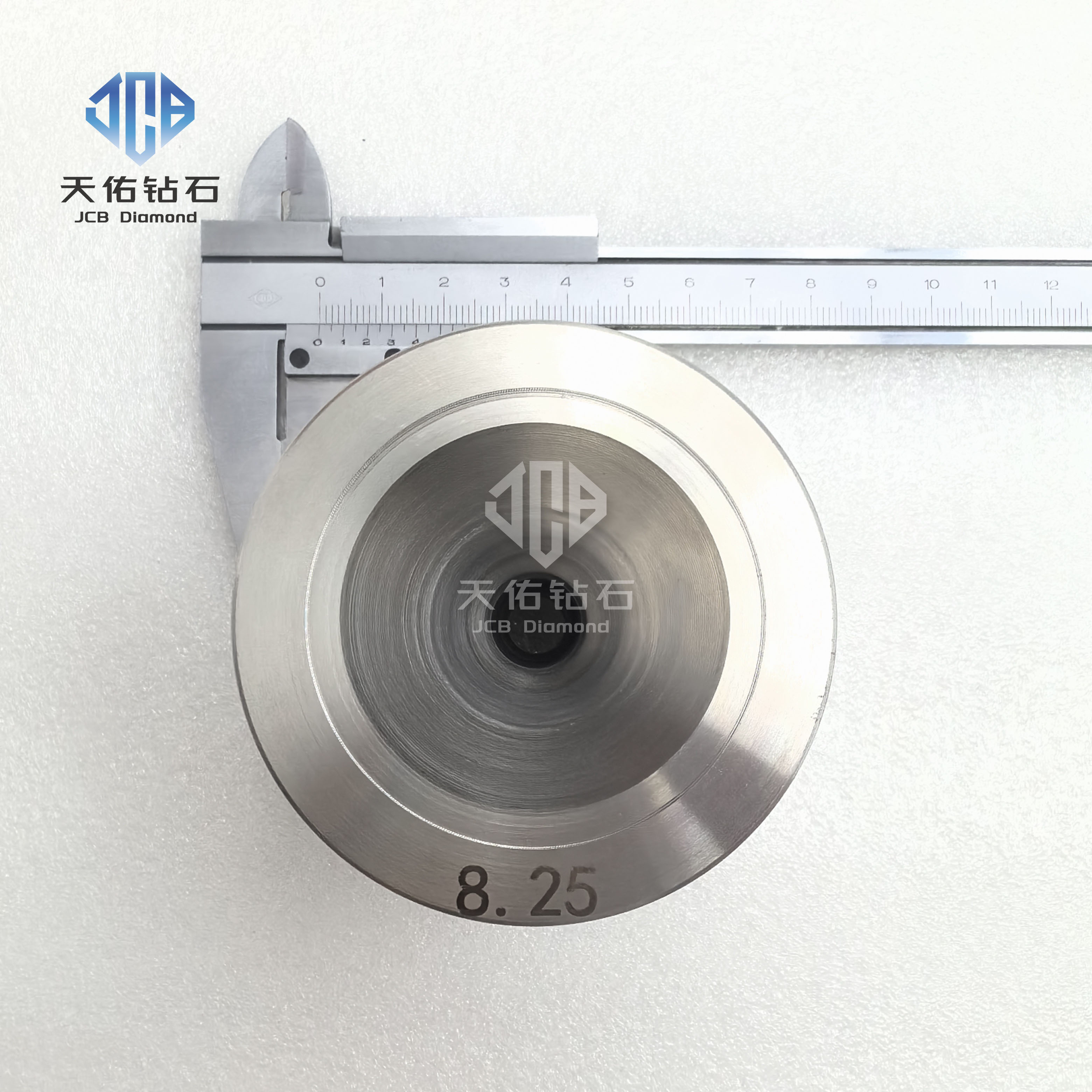

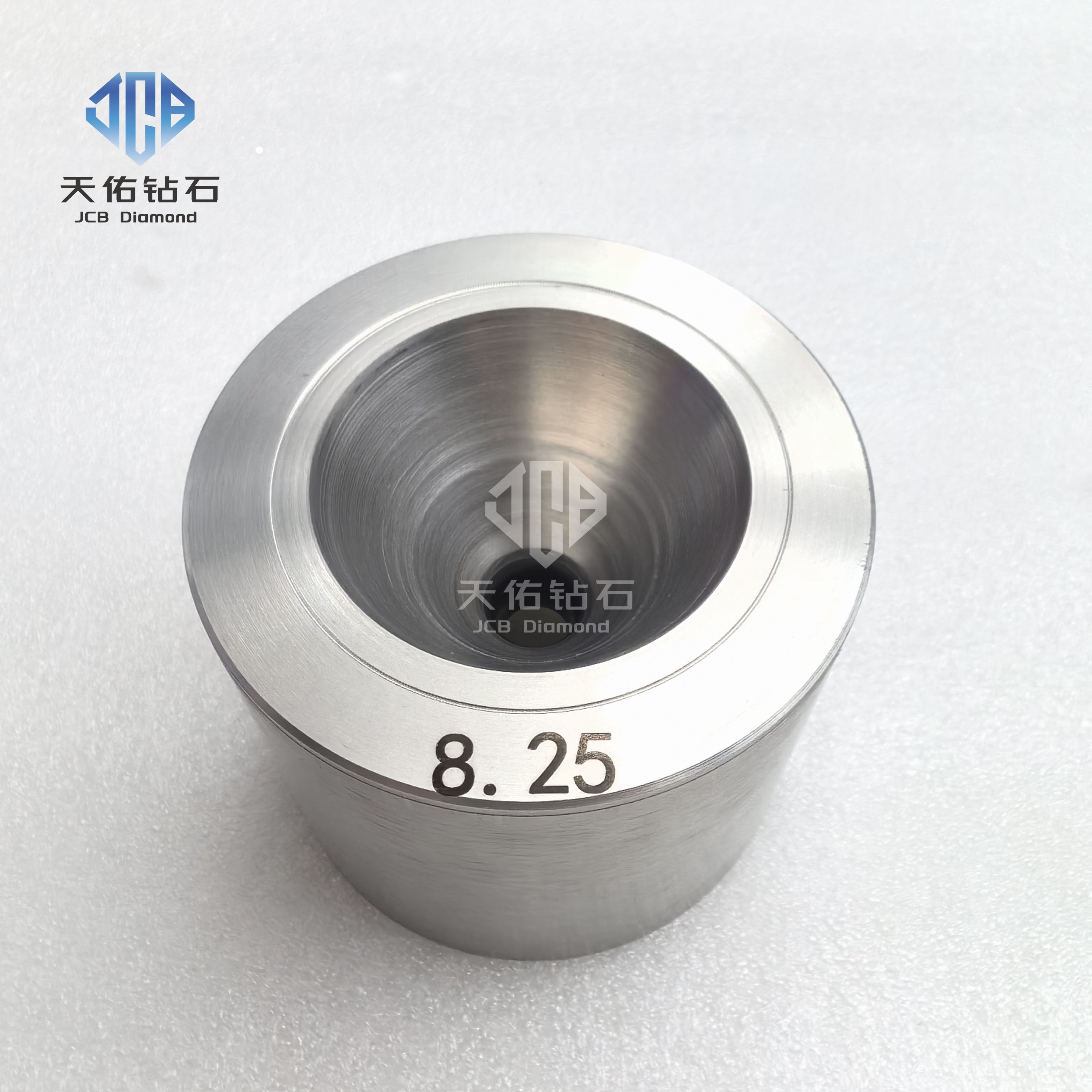

モデル: 58*70 8.25mm
| Industry | Typical Wire Types | Wire Diameter Range |
|---|---|---|
| Wire & Cable | Copper wire, aluminum wire, copper alloy wire | φ0.10 – 8.00 mm |
| Welding Wire | Gas shielded welding wire, submerged arc welding wire, flux-cored wire | φ0.80 – 4.00 mm |
| Steel Wire Products | Steel cord, hose reinforcement wire, spring steel wire | φ0.15 – 3.00 mm |
| Communication Cable | Tinned copper wire, silver-plated copper wire, copper-clad steel wire | φ0.10 – 1.50 mm |
| Medical & Precision | NiTi wire, stainless steel micro-wire | φ0.10 – 0.80 mm |
| Shaped Wire | Rectangular copper wire, square steel wire, hexagonal steel wire | Customized per drawing |
| Parameter | Range |
|---|---|
| Die Core Material | Polycrystalline Diamond (PCD) |
| Diamond Grit Size | 2 μm / 5 μm / 10 μm / 25 μm (selected based on wire diameter and surface finish requirements) |
| Bore Diameter Range | 0.05 mm – 12.00 mm (larger sizes available on request) |
| Bore Diameter Tolerance | ±0.001 mm (precision grade) / ±0.0025 mm (standard grade) |
| Ovality | ≤ 0.001 mm (precision grade) |
| Surface Roughness (Ra) | ≤ 0.02 μm inside bore (mirror polish) |
| Casing Material | Stainless steel / Titanium alloy / Cemented carbide (selected based on drawing force) |
| Operating Temperature | ≤ 700 ℃ (in air, limited by binder) |
注: PCD ダイの穴径、減速角、軸受の長さはすべて、お客様の製図プロセスに応じてカスタマイズできます。
